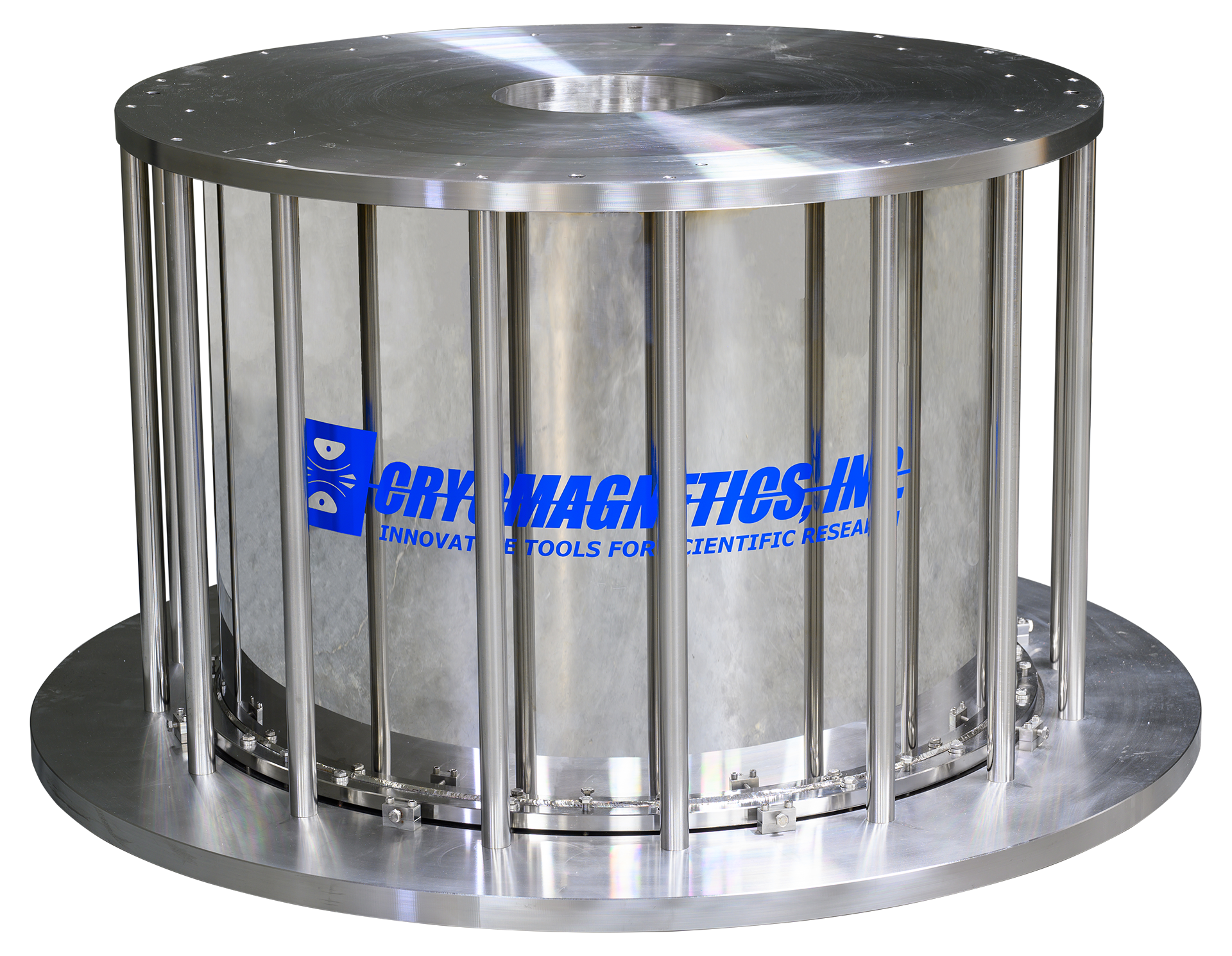

Superconducting Magnet for Gyrotron Tubes

Cryomagnetics is the world-leading manufacturer of superconducting magnet systems used with gyrotron tubes.

Customer Location: Germany

140GHz and 175GHz Magnet Systems

• Superconducting Coils

• Main: A set of three (3) series-connected coils that produce the specified field shape.

• Supplementary coil: A coil that produces higher cavity field regions, up to 7.1 T, in conjunction with the main coil set.

• Gun: Used to trim the field at the cathode position.

• 9.06 inch 230mm Vertical Room Temperature Bore.

• Single, Sumitomo 1.5W Gifford McMahon Cryocooler.

Delivered: April, 2022

NOTE: All designs are bespoke and require careful collaboration with gyrotron tube manufacturer.
