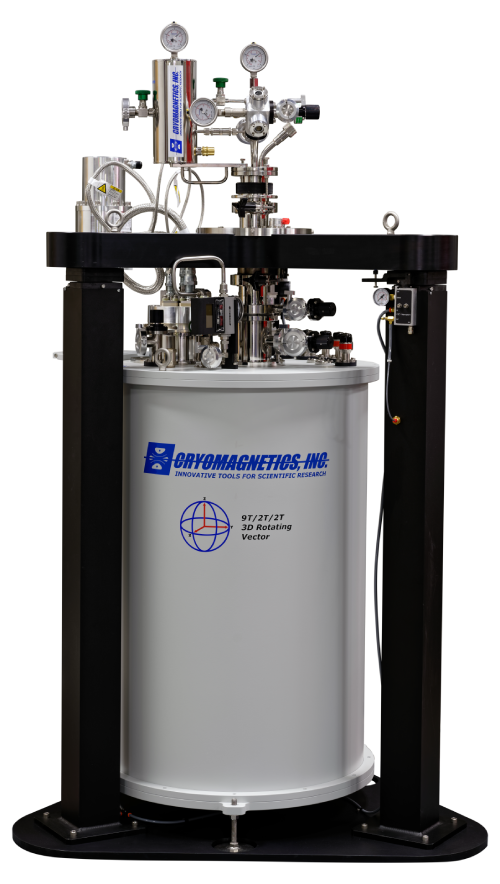

9-2-2 Tesla C-Mag 3-Axis Superconducting Magnet System with He3
By: Steve Short
September 4, 2020
C-Mag 9/2/2 Tesla 3-Axis Cryogen-FREE superconducting magnet system cooled by a single 1.5W Pulse Tube cryocooler to conductively cool the magnet and cryostat as well as cooling a secondary closed loop helium circuit used for controlling the sample temperature. System features include a Helium-3 refrigerator mounted on a pneumatically isolated low vibration platform, inclinometer, automated (mass-flow) needle valve. Up to 9 Tesla possible in the Z-Axis or 2 Tesla spherical vector rotation. For an ultimate low vibration sample environment the standard sample rod or He3 Refrigerator is mounted on a pneumatically isolated platform, with fine tuning of stage through adjustable mounting plate.
Customer Location: China
9/2/2 Tesla 3-Axis Magnet with 2 Tesla Spherical Vector Rotation
61mm Sample Space
Automated needle valve
Custom Newport pneumatic vibration isolation with inclinometer and allowance for X/Y/Z tuning
Single Sumitomo 1.5W, Remote Mount Pulse Tube Cryocooler
Delivered: July, 2020
